Used Extrusion Machines

Twin Screw Extruder, conical

Art.-No.: 2501

Twin Screw Extruder
Manufacturer: Reifenhäuser
Type: BT-1000-2-63 K
Year of construction: 1994
Working hours: 32.303 hours
Screw geometry: conical for PVC-rigid profiles
Screw diameter: 63 – 121 mm
Screw length: 1300 mm
Screw speed: max. 32.0 1/min.
Nominal torque from gear box: 1000 daNm
Drice motor: DC-motor Baumüller, 43.0 kW
Barrel heating/cooling zones: 4/3 (air coling with fan)
Adapter heating zones: 1
Toling heating zones: 5
Temperature control: : digital controllers (2 x PSHG Multpact 88)
Output rate: approx. 150 – 200 kg/h for PVC-rigid profiles
Total connected load: max. 155 kW
Accessories: dosing unit, vacuum pump and material hopper
Special accessories: melt temperature- and melt pressure sensors
Max. permissible melt pressure: 500 bar
Extrusion height: 1150 mm
Dimensions: 4250 x 1200 x 1750 mm, without hopper (LxWxH)
Weight: approx. 3000 kg
Reamark: Screws and barrel was replaced two years ago.
Condition: Reconditioned and checked for function.

Price: EUR 17.900,-

Twin Screw Extruder, parallel

Art.-No.: 2502

Twin-screw extruder, parallel
Manufacturer: Hans Weber Maschinenfabrik GmbH
Type: DS 85
Year of manufacture: 1979/2022
Machine no.: 85-399
Screw geometry: for PVC-hard profiles
Screw diameter: 2 x 85 mm
Screw length: 17 x D
Screw speed: max. approx.30 rpm
Screw torque: 10000 Nm
Motor power: 3.3 – 25.0 kW
Drive motor: commutator motor Elektra Faurndau
Cylinder heating/cooling zones: 4/2 (air cooling with fan)
Tool heating zones: 8
Temperature control: 12 x digital temperature controllers PMA KS40
Accessories: Mass pressure sensor and mass temperature sensor
Connected load: approx. 60 kW (without tool)
Extrusion height: 1100 mm
Output capacity: approx. 150 – 180 kg/h for PVC-hard profiles
Accessories: Material hopper and connection flange
Accessories: Vacuum pump (1.1 kW) incl. material separator
Dimensions: 4500 x 1200 x 2100 mm (LxWxH), incl. material hopper
Total weight: approx. 4000 kg

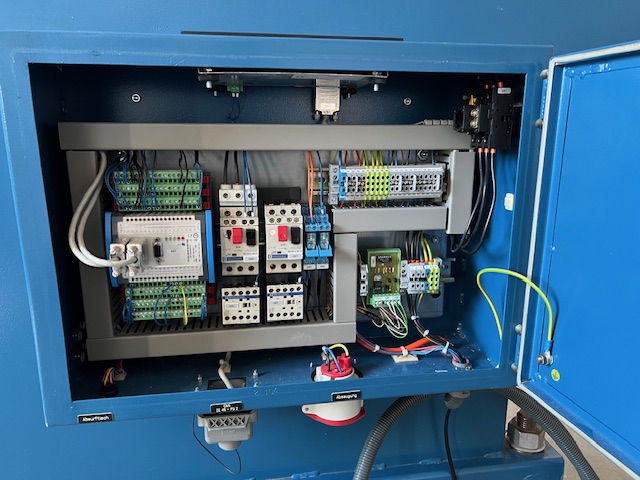

Note: The electrical control cabinet was completely renewed in 2022.
Since then only 216 working hours.

Price: EUR 19.500,-

Haul-off for profiles

Art.-Nr.: 2503

Caterpillar haul-off
Manufacturer: Blake
Type: 303-1600-270
Year of manufacture: 1997
Haul-off force: approx. 40,000 N
Pad width: 300 mm
Passage width: max. 500 mm
Effective contact length: 2400 mm
Haul-off speed: max. approx. 2.0 m/min.
Extrusion height: 1000 – 1200 mm
Caterpillar clamping: pneumatic, at the front and back
Dimensions: 4000 x 1200 x 2300 mm (LxWxH)
Weight: approx. 3000 kg
Condition: recondition and checked for function

Price: reserved

Vacuum calibrating unit

Art.-Nr.: 2504

Vacuum Calibration Unit
Manufacturer: Blake GmbH
Type: 203-3-4,0
Year of manufacture: 1997
Serial number: 758
Total length: 5600 mm
Vacuum pumps: 3 x 5.5 kW
Longitudinal adjustment: electromotive
Height/lateral adjustment: front and rear
V2A tub: interior/exterior width: 450/700mm, length: 4500 mm
Connected load: approx. 20 kW
Condition: recondition and checked for function
Total weight: approx. 3.000 kg

Price: reserved

Saw for profiles

Art.-Nr.: 2505

Profile saw
Manufacturer: Vobau – Artur Baston GmbH
Type: TSQ-P-504-A-300
Year of manufacture: 1997
Saw blade diameter: max. 500 mm
Profile width: max. 350 mm
Profile height: max. 150 mm
Travel distance saw wagon: 500 mm
Extrusion height: 1000 – 1200 mm
Accessories: Incremental encoder
Dimensions: 1700 x 1200 x 2100 mm (LxWxH)
Weight: approx. 500 kg
Condition: recondition and checked for function

Price: reserved

Operating housing (touch panel) incl.
industrial PC for Weber extruder, unused

Art.-Nr.: 2506
Operating housing incl. industrial PC
Manufacturer: RMA Maschinen-Automation
Supplier: Hans Weber Maschinenfabrik
Type: Touch Panel PC PSQ-ET PC-115-PSQ
Year of construction: 2017
Serial-No.: 3225716
Dimension: 400 x 310 x 80 mm (LxHxW)
Remark: The control housing was purchased in 2017 new from Weber as a spare part.
The unit has not been used since then.
Max. Profile cross-section: approx. 140 x 60 mm

Price: on request

Tool flange for extruder Weber DS12.22

Art.-Nr.: 2507
Tool flange for extruder Weber DS12.22
Manufacturer: Hans Weber Maschinenfabrik
Type: DS12.22
Year of construction: unknown
Accesories: 2 pieces heating belts
Condition: used, in working condition

EUR 1.500,-

Various heating belts, complete list available

Art.-Nr.: 2508

Manufacturer: mostly WEMA

Price: € 1.500,00 per pallet
